Revolution Motor for the Mitchell 35mm Camera
Single-frame + Time Lapse Intervalometer + Sync

Also see the Mitchell 35mm Sync Page.

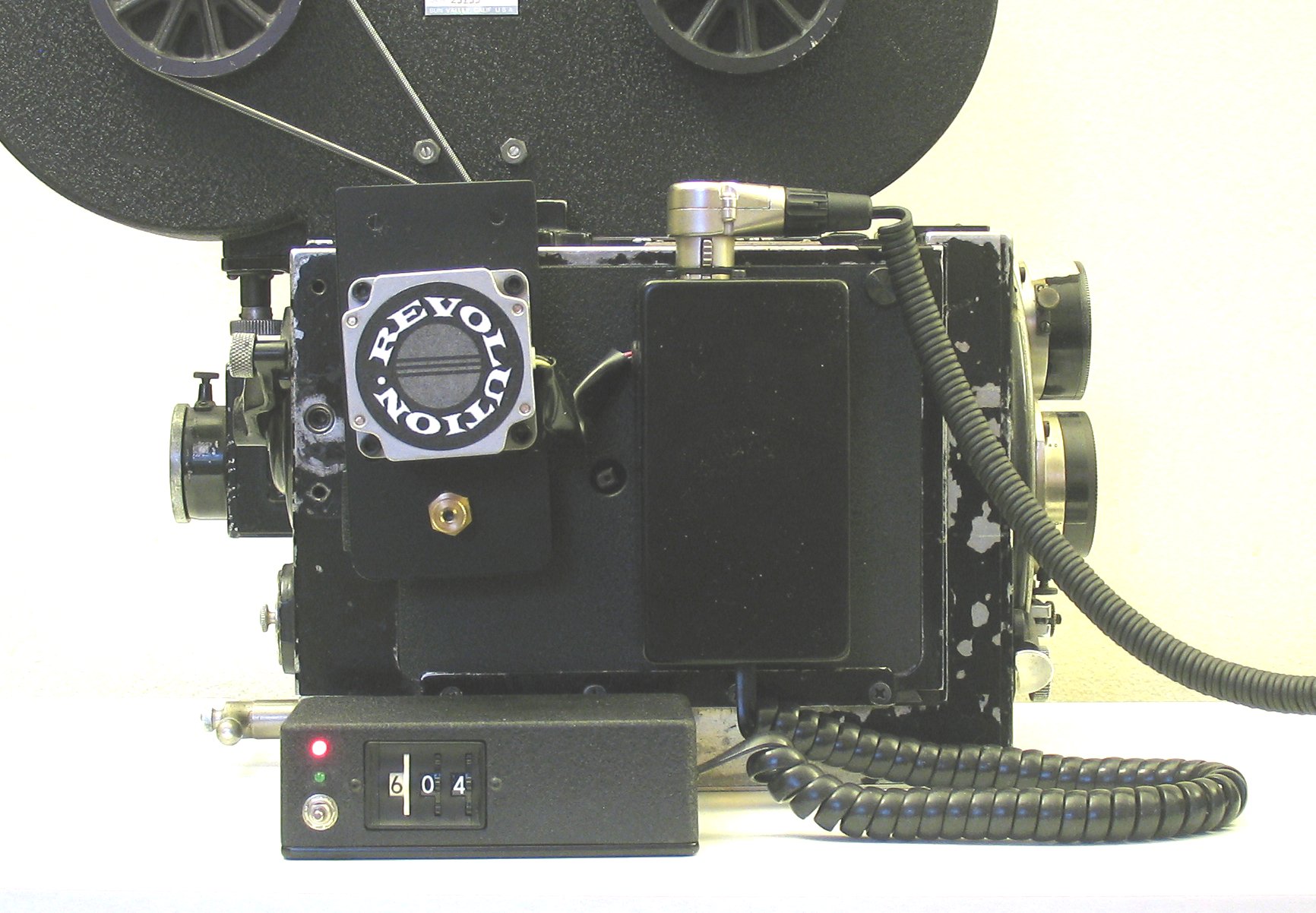

This the standard Revolution 121 motor attached to a Mitchell NC. It is specially 'tuned' for the Mitchell, because the Mitchell has a giant brass flywheel in it. Also, it is capable of reverse operation, because Mitchell cameras will happily run in reverse.

It has all the features of the Revolution Motor

  • Shutter speeds of 1/8, 1/4, 3/8, 1/2 second, and
  • Long-duration exposures from 1 second to 4 minutes.
  • Intervals from 1 second to 9 hours.
  • Auto-shutoff after desired number of frames exposed!
  • Delay-before-filming up to 24 hours.
  • Presets! Store favorite settings in permanent memory.
  • Chaining! Film the contents of multiple Presets.

It will also run at slow-sync speeds (maximum speed is dependent on voltage, but it generally at least 4fps and up to 8fps).

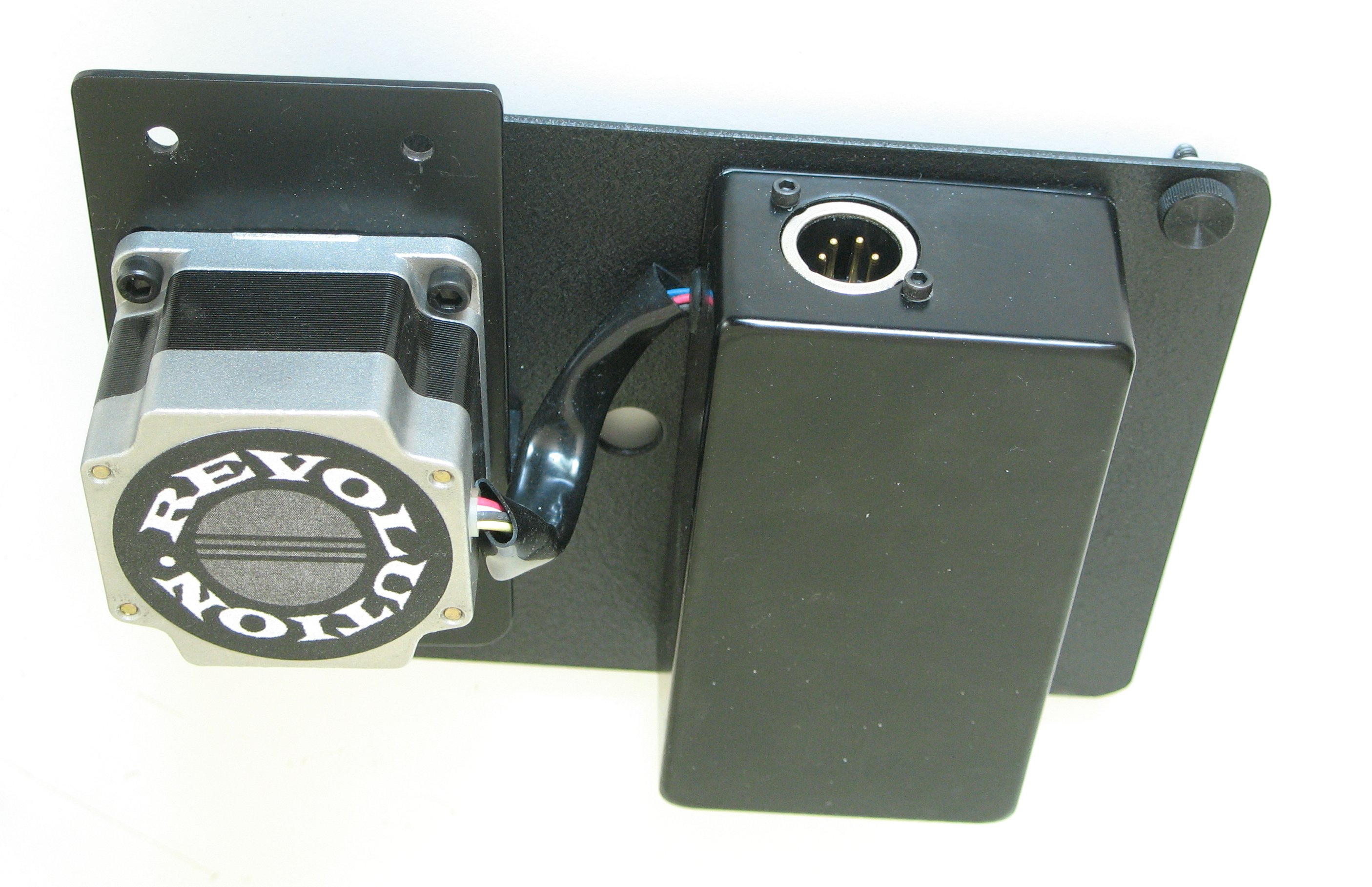

Slow-sync running (3fps) and motor removal
